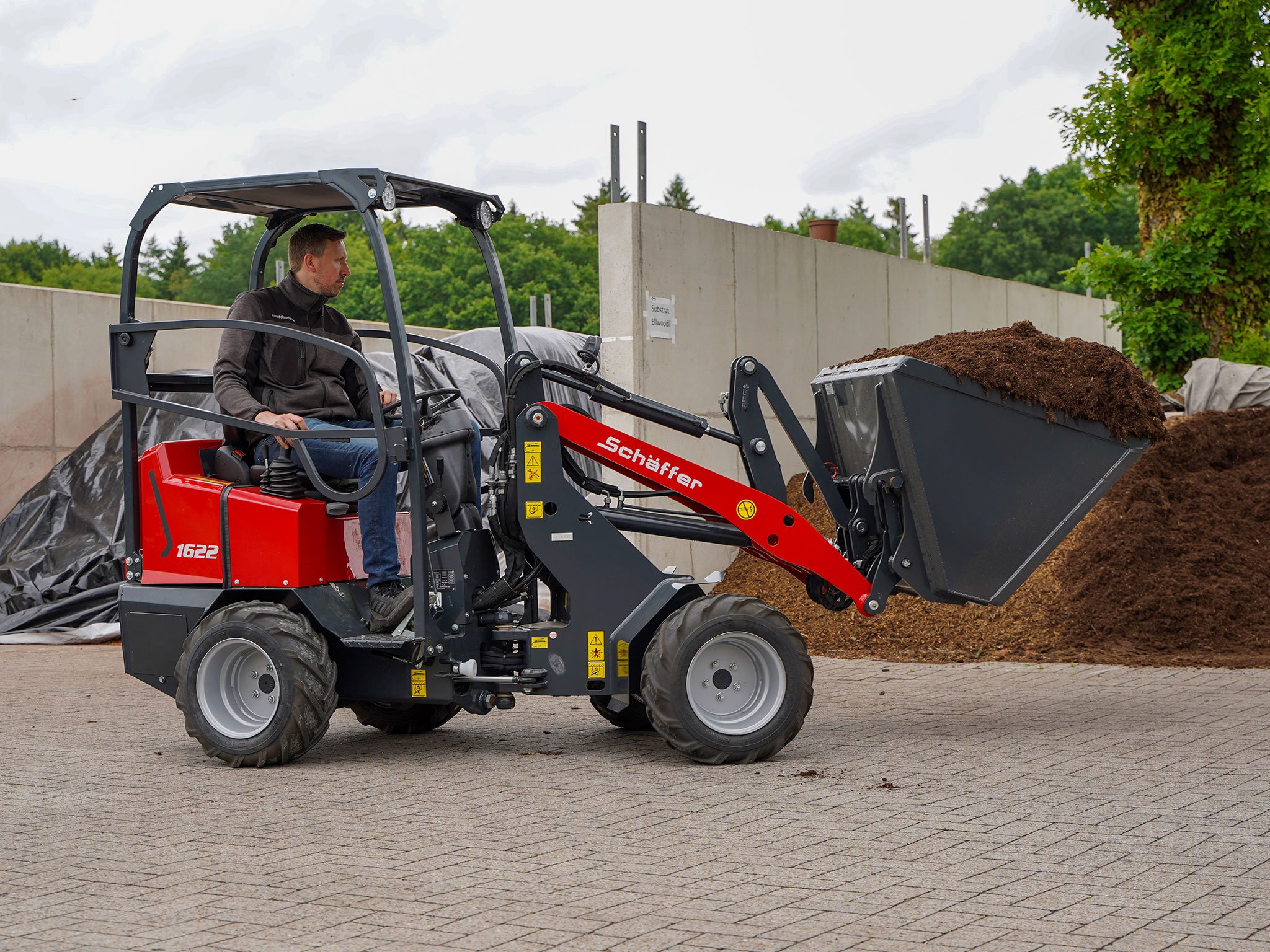

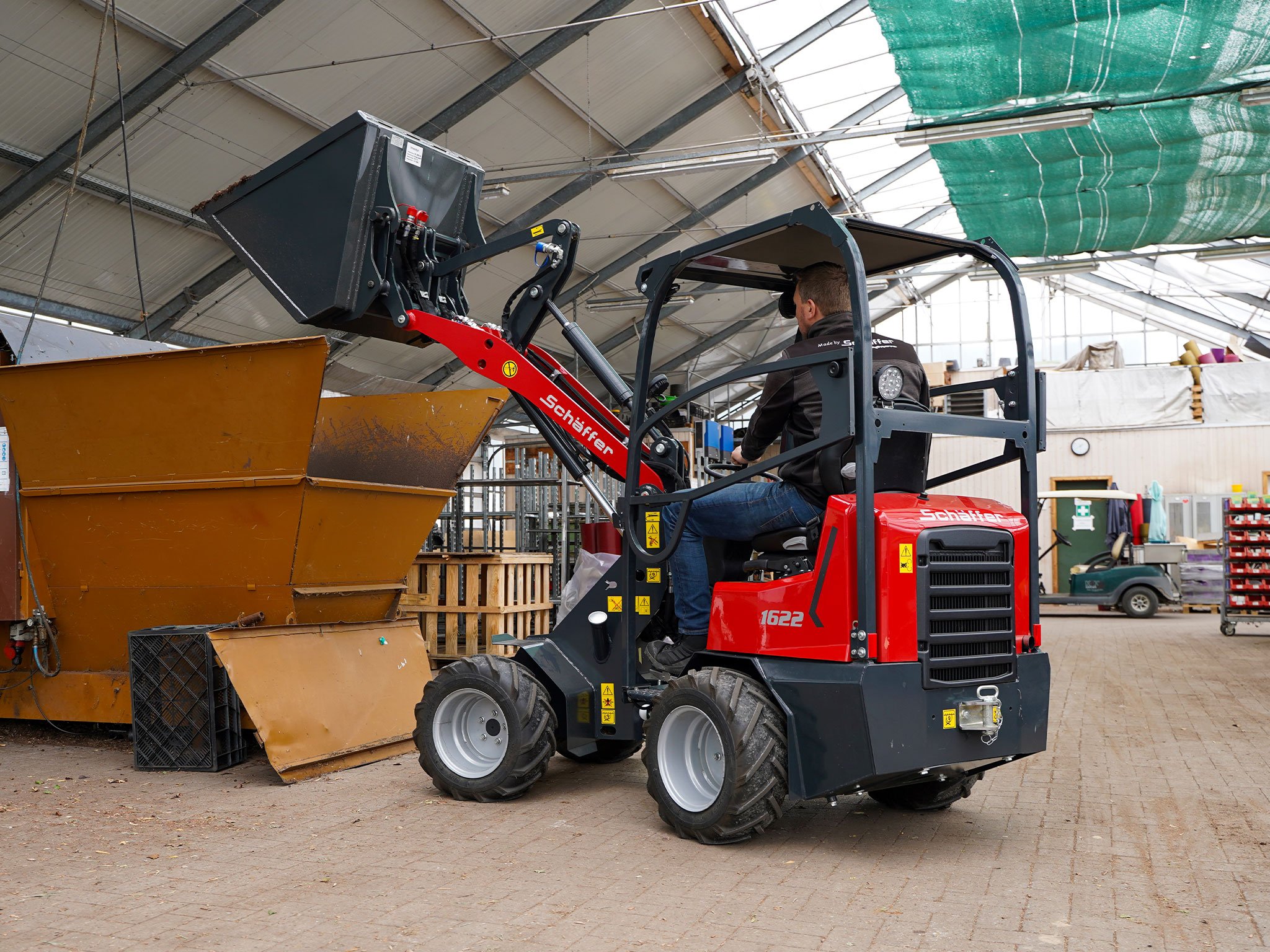

Compact loader 1622

Standard equipment compact loader 1622

  • 3-cylinder diesel engine Kubota D902, 16.2 kW (22 HP)
  • Hydrostatic four wheel drive with foot pedal control
  • Tyres 23x8.50-12 AS, offset +60
  • Genuine Schäffer axle
  • Combined oil cooler
  • Drum brake as parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • 1 x LED working headlight front on the boom
  • Parallel lift
  • Mechanically operated additional controller
  • Working hydraulics: 28 l/min
  • Adjustable steering column
  • Hour meter, fuel control lamp and temperature indicator
  • Mechanical hand throttle
  • Driver-on-board switch
  • Quick-change frame SWH with hydraulic tool lock

Technical data compact loader 1622

  • Engine
    • Type: 3-cylinder diesel engine Kubota D902, 16.2 kW (22 HP)
    • Output: 16,2 kW (22 HP)
    • Exhaust gas treatment / emission level: - / V
  • Tyres
    • Standard tyres: 23x8.5-12 AS
    • Option I: 23x8.5-12 SKD/MultiTrac
    • Option II: 23x10.5-12 AS/MultiTrac
  • Electric system
    • Operating voltage: 12 V
  • Dimensions
    • (A) Wheelbase: 1,345 mm
    • (B) Chassis length: 2,450 mm
    • (C) Overall length with standard bucket: 3,050 mm
    • (D) Digging depth: 80 mm
    • (E) Max. working height: 2,635 mm
    • (G) Loading height with pallet forks: 2,020 mm
    • (H) Max. dumping height: 1,510 mm
    • (I) Front end height: 1,390 mm
    • (J) Dumping width: 195 mm
    • (K) Seat height: 1,010 mm
    • (L) Protective roof height: 1,990 mm
    • (M) Max. bucket pivot point: 2,230 mm
    • (N) Overall width / option: 890 / 1,060 mm
    • (O) Inner turning radius: 970 mm
    • (P) Outer turning radius: 1,875 mm
    • (Q) Outer radius with standard bucket: 2,222 mm
  • Drive
    • Traction hydraulics: Hydrostatic (accelerator pedal)
    • Axles: Original Schäffer axles, 5 wheel nut rim
    • Speed: 16 km/h
  • Brakes and steering
    • Service braking system: Hydrostatic
    • Parking brake: Mechanical drum brake
    • Steering: Fully hydraulic articulated-swivel steering
  • Tank capacity
    • Fuel: 25 l
    • Hydraulic oil: 22 l
  • Working hydraulics
    • Delivery rate / option: 28 l/min
    • Operat. pressure: 200 bar
  • Weights
    • Operating weight protective roof incl. Original tyres, driver and standard bucket: 1,250 kg
    • Lifting capacity: 810 kg
    • Tipping load, straight, pallet fork acc. to ISO 8313: 600 kg
    • Tipping load, straight, bucket acc. to ISO 8313: 800 kg
    • Tipping load, articulated, pallet fork acc. to ISO 8313: 450 kg
    • Tipping load, articulated, bucket acc. to ISO 8313: 580 kg
    • Payload, pallet fork, even ground acc. to EN 474-3: 360 kg
    • Payload, pallet fork, uneven ground acc. to EN 474-3: 270 kg
    • Payload bucket acc. to EN 14397-1: 290 kg
  • Sounds and vibration
    • Sound pressure level LpA: 84 db(A)
    • Sound power level guaranteed LwA: 101 db(A)
    • Sound power level equivalent LwA: 100 db(A)
    • Hand/arm vibration acc. to ISO 8041: < 2.5 m/s²
    • Total body vibration acc. to ISO 8041: < 0.5 m/s²
Dimensions
Notice
All specifications are subject to change. Optional equipment and tyre dimensions may vary operating weight and tipping loads. The Euro type headstock and foreign attachments may have a negative impact on tipping load and parallel lift. Images may contain products or equipment components which are not mentioned or cannot be obtained as a standard. Maximum values for tipping loads and payloads can only be reached with additional ballasting.

Tyres compact loader 1622

Dimension Diameter (mm) / Width (mm) Rim offset Loader width (mm) Tread Tread options
23x8.5-12 580 / 220 60 890 AS SKD, MultiTrac
23x10.5-12 580 / 270 0 1,060 AS MultiTrac
