Compact loader 3650

Technical data

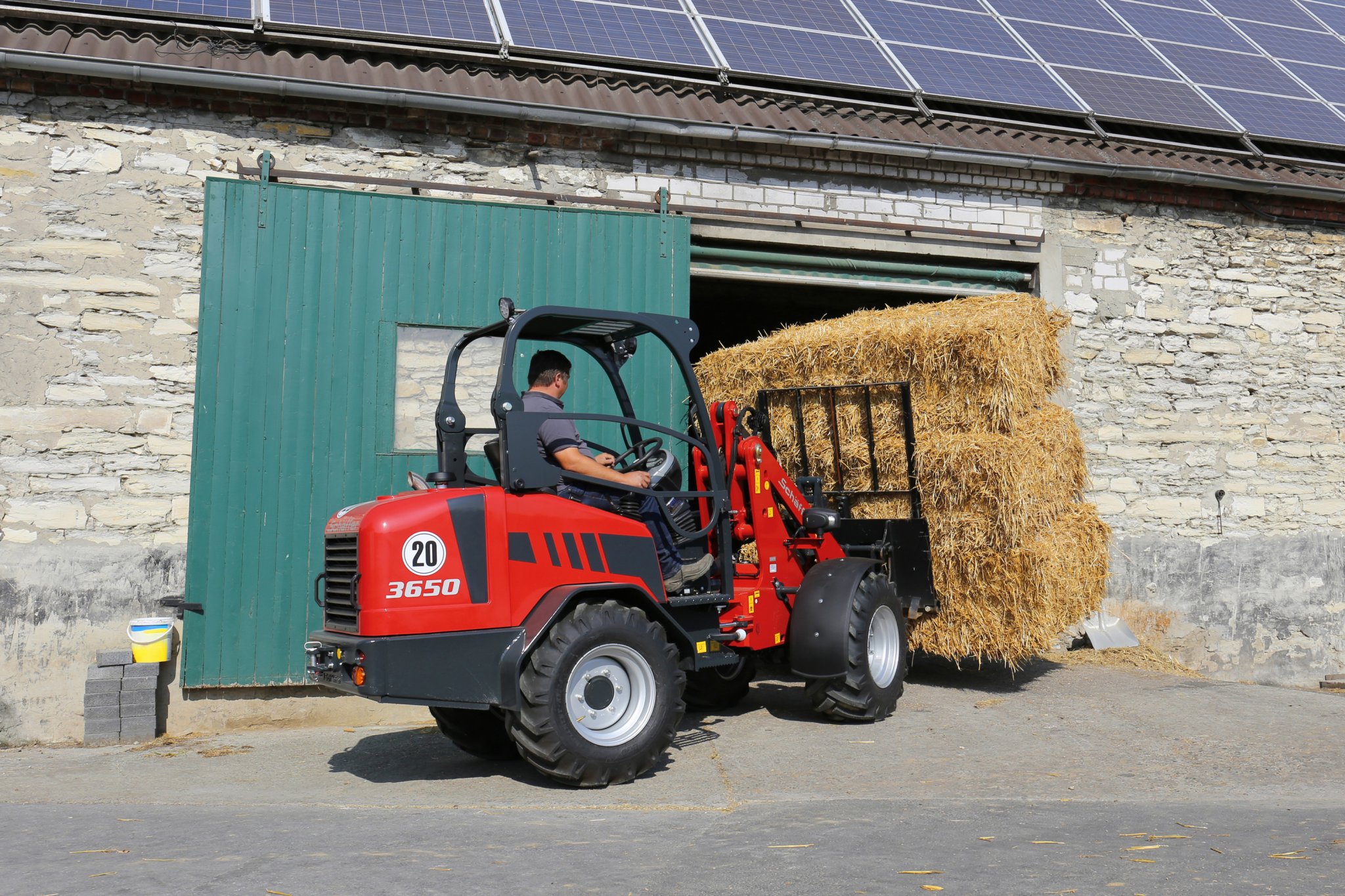

Compact loader 3650 Image 1

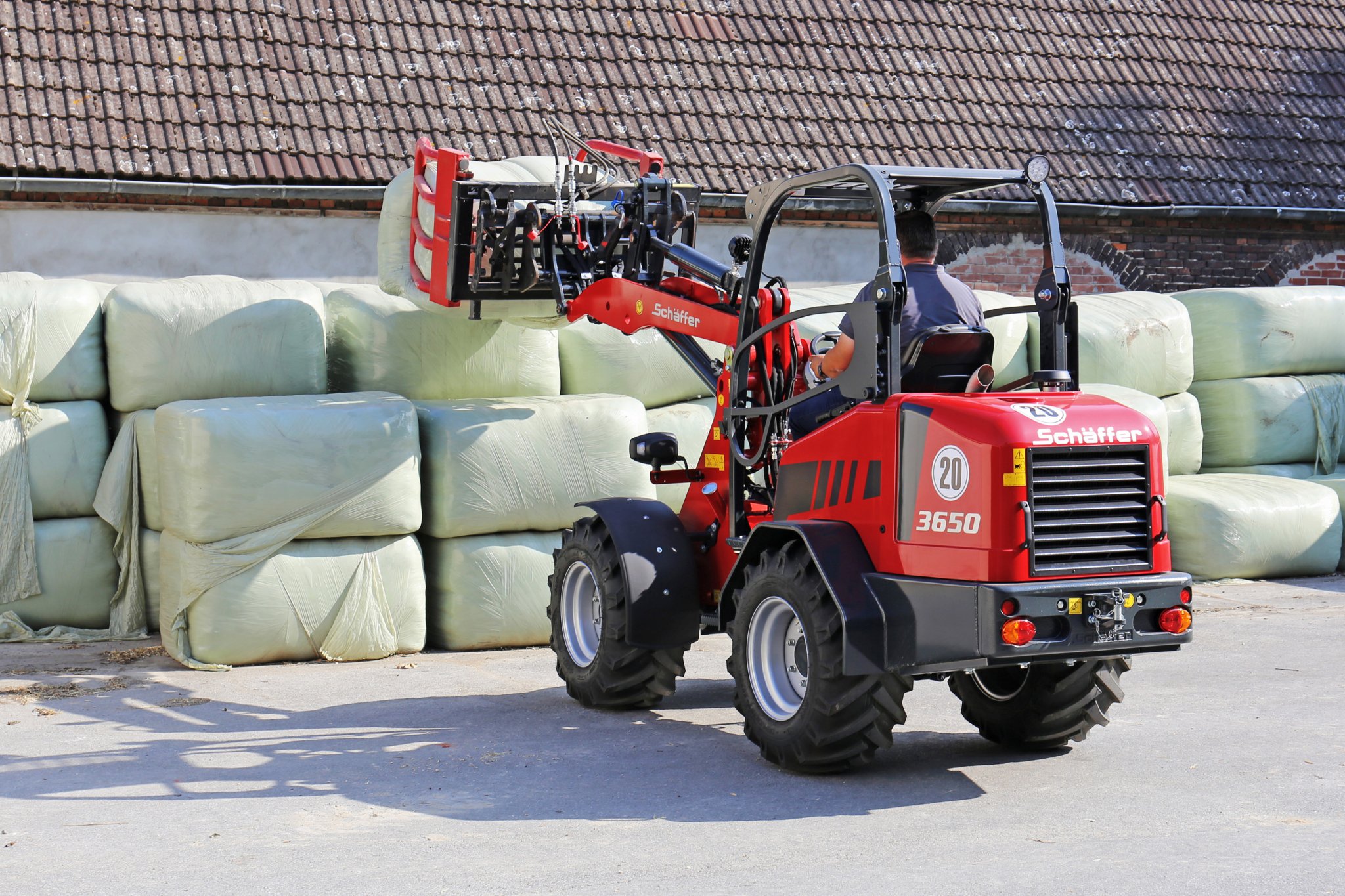

Compact loader 3650 Image 2

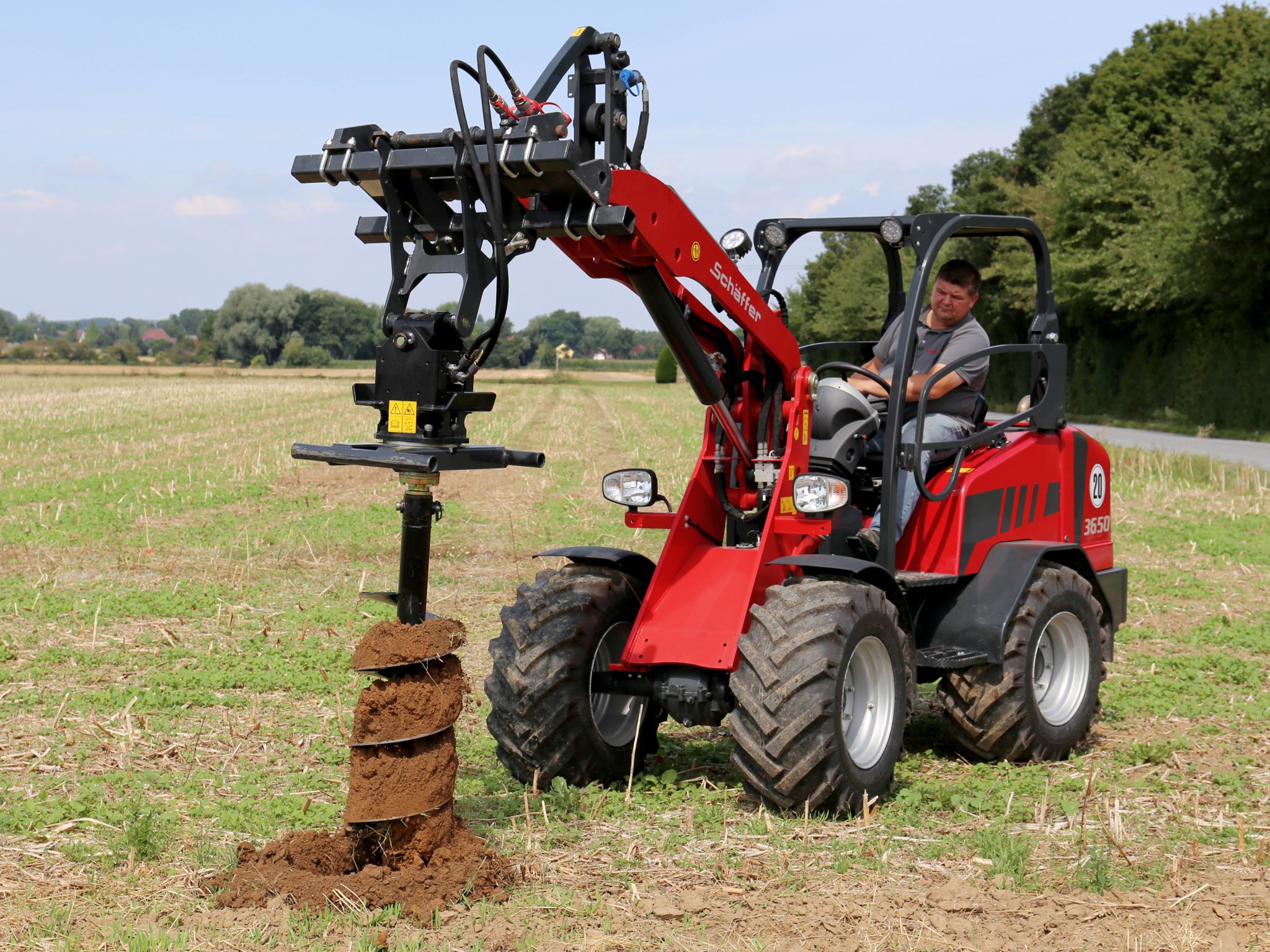

Compact loader 3650 Image 3

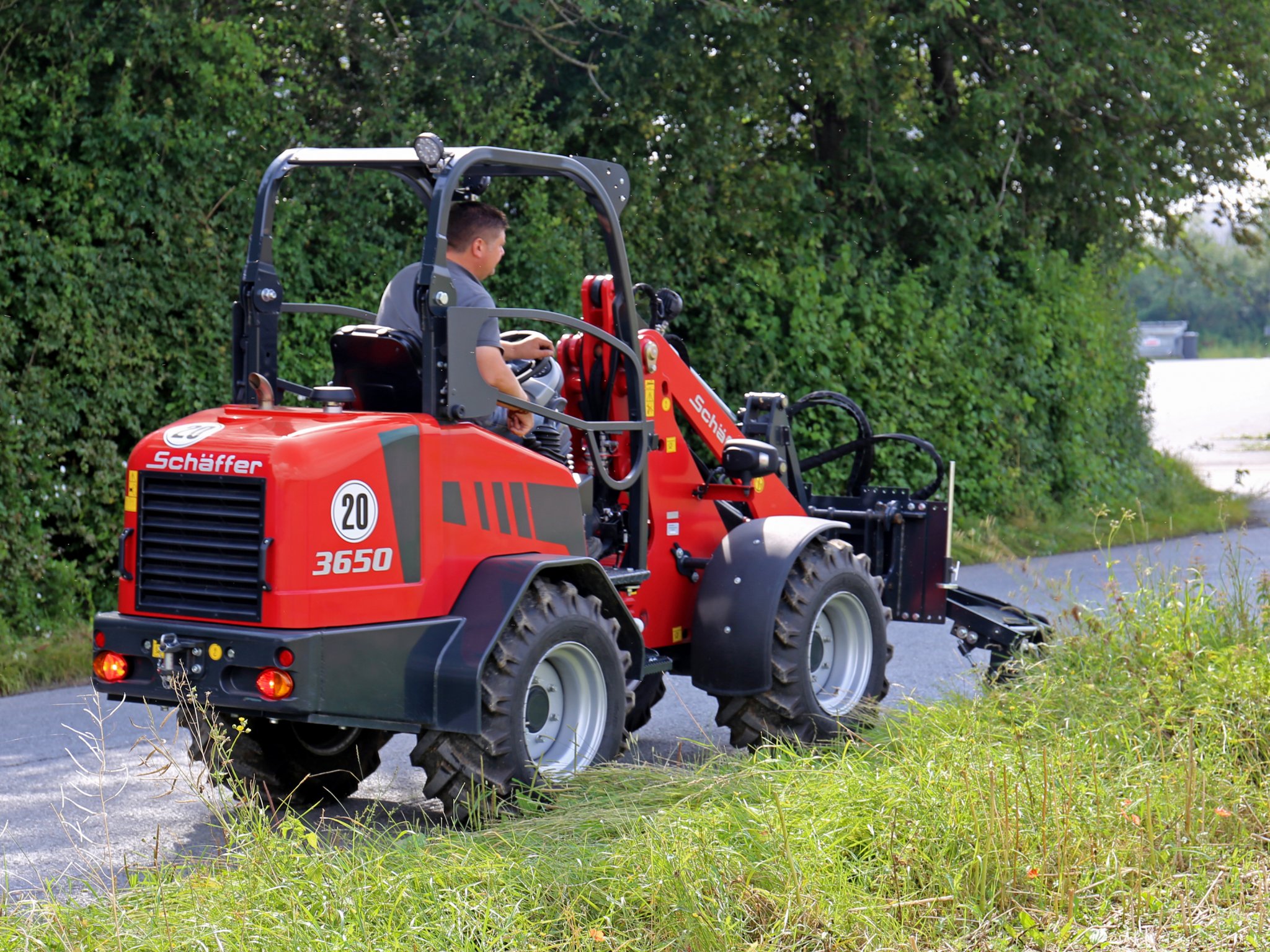

Compact loader 3650 Image 4

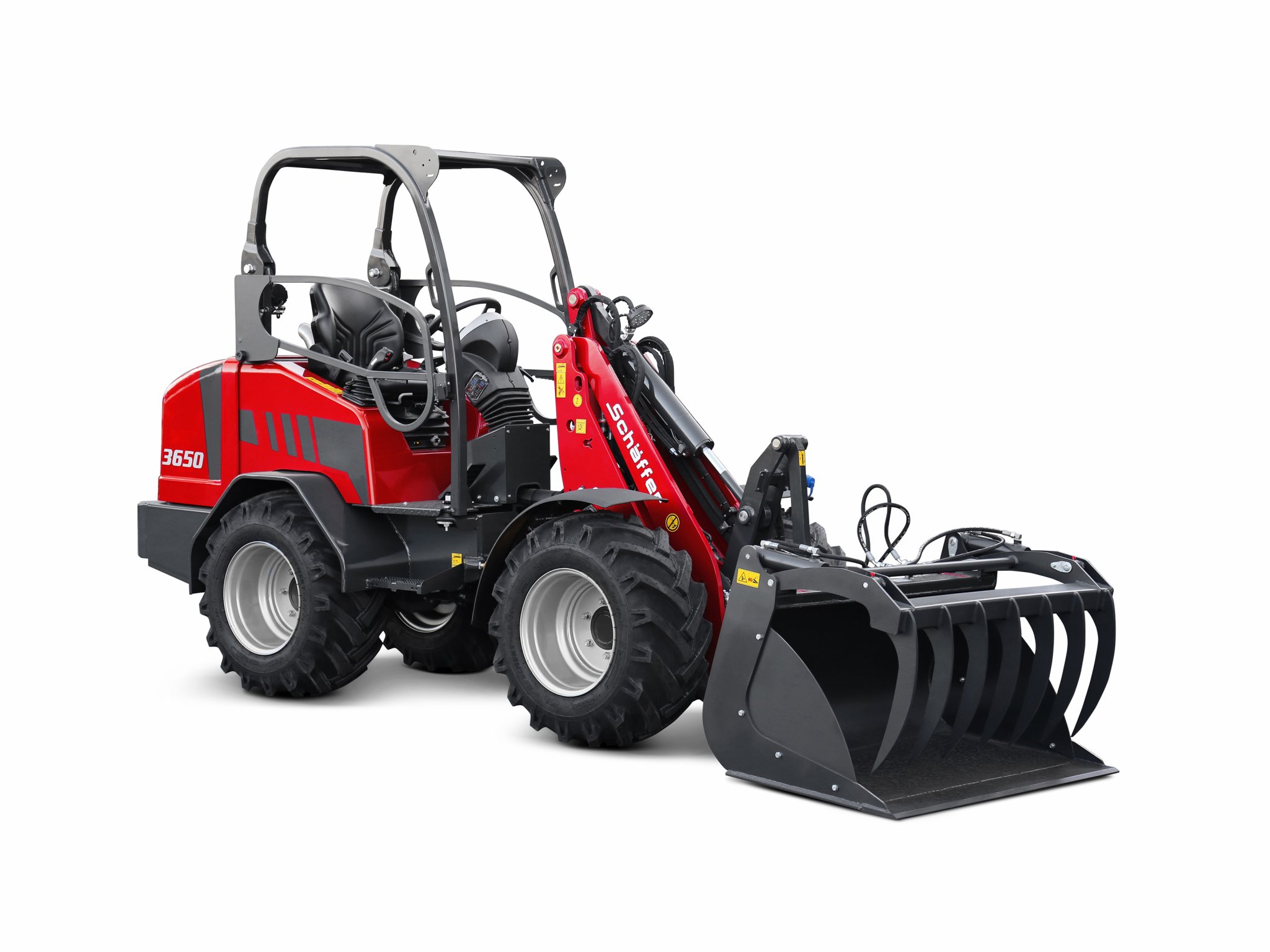

Compact loader 3650 Image 5
Compact loader 3650 Image 6
Compact loader 3650 Image 7
Compact loader 3650 Image 8
Compact loader 3650 Image 9
Compact loader 3650 Image 10
Compact loader 3650 Image 11
Compact loader 3650 Image 12

Standard equipment compact loader 3650

  • 3-cylinder diesel engine Kubota D1803-CR(-T), 37 kW (50 HP)
  • DOC and DPF for compliance with Stage V emissions standards
  • Hydrostatic four wheel drive with automotive control
  • Tyres 10.0/75-15.3 AS, offset -5
  • HTF (High Traction Force)
  • SPT (Schäffer Power Transmission)
  • ECO Mode
  • Hydraulic quick gear 20 km/h switchable under load
  • Genuine Schäffer axle, 6 hole
  • Combined oil cooler
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • LED working headlights on protection roof version: 1 x on the boom; cabin version: 2 x front, 1 x rear
  • Parallel lift
  • Mechanically operated additional controller
  • Working hydraulics standard / options: 46 / 51 (stronger pump) / 81 l/min (MHF)
  • Adjustable steering column
  • Hour meter, fuel control lamp and temperature indicator
  • Rear weight end plate
  • Driver-on-board switch
  • Quick-change frame SWH with hydraulic tool lock
YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

Compact loader 3650

Find out more! Sit back and watch our product video.

Technical data compact loader 3650

  • Engine
    • Type: 3-cylinder diesel engine Kubota D1803-CR(-T)
    • Output: 28 kW (38 HP) / 37 kW (50 HP)
    • Exhaust gas treatment / emission level: DOC, DPF / V
  • Tyres
    • Standard tyres: 10.0/75-15.3 AS, ET-5
    • Option I: 31x15.5-15 AS, ET-70
    • Option II: 15.0/55-17 AS, ET+45
    • Option III: 11.5/80-15.3
  • Electric system
    • Operating voltage: 12 V
  • Dimensions
    • (A) Wheelbase: 1,800 mm
    • (B) Chassis length: 3,485 mm
    • (C) Overall length with standard bucket: 4,185 mm
    • (D) Digging depth: 90 mm
    • (G) Loading height with pallet fork / option: 2,810 / 3,060 mm
    • (H) Max. dumping height / option: 2,140 / 2,390 mm
    • (I) Front end height / option: 1,690 / 1,790 mm
    • (J) Dumping width: 470 mm
    • (K) Seat height: 1,226 mm
    • (L) Protective roof height: 2,230 mm
    • (L) Cab height: 2,180 mm
    • (M) Max, bucket pivot point / option [mm]: 2,950 / 3,200 mm
    • (N) Overall width / option: 1,100 / 1,200 - 1,570 mm
    • (O) Inner turning radius: 1,230 mm
    • (P) Outer turning radius: 2,330 mm
    • (Q) Outer radius with standard bucket: 3,020 mm
  • Drive
    • Traction hydraulics: Hydrostatic-automotive
    • Speed / option: 0 - 20 kph in 2 gear switchable / 0 - 30 kph
    • Axles / option: Original Schäffer axles, 6 wheel nut rim, automatic limited-slip differential
  • Brakes and steering
    • Service braking system: Combined brake hydrostatic and multi-disc brake
    • Parking brake: Multi-disc brake running in oil bath
    • Steering: Fully hydraulic articulated-swivel steering
  • Tank capacity
    • Fuel: 50 l
    • Hydraulic oil: 48 l
  • Working hydraulics
    • Delivery rate / option: 46 l/min / 51 l/min / 51 + 46 l/min / 81 l/min
    • Operat. pressure: 200 bar
  • Weights
    • Operating weight protective roof incl. Original tyres, driver and standard bucket: 2,700 kg
    • Operating weight cabin incl. Original tyres, driver and standard bucket: 2,850 kg
    • Lifting capacity: 2,000 kg
    • Tipping load, straight, pallet fork acc. to ISO 8313: 1,267 - 1,580 kg
    • Tipping load, straight, bucket acc. to ISO 8313: 1,523 - 1,845 kg
    • Tipping load, articulated, pallet fork acc. to ISO 8313: 750 kg
    • Tipping load, articulated, bucket acc. to ISO 8313: 950 kg
    • Payload, pallet fork, even ground acc. to EN 474-3: 600 kg
    • Payload, pallet fork, uneven ground acc. to EN 474-3: 450 kg
    • Payload bucket acc. to EN 14397-1: 475 kg
  • Sounds and vibration
    • Sound pressure level LpA: 85 db(A)
    • Sound power level guaranteed LwA: 101 db(A)
    • Sound power level equivalent LwA: 100 db(A)
    • Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
    • Total body vibration acc. to ISO 8041: <0,5 m/s²
Dimensions
Notice
All specifications are subject to change. Optional equipment and tyre dimensions may vary operating weight and tipping loads. The Euro type headstock and foreign attachments may have a negative impact on tipping load and parallel lift. Images may contain products or equipment components which are not mentioned or cannot be obtained as a standard. Maximum values for tipping loads and payloads can only be reached with additional ballasting.

Tyres compact loader 3650

Dimension Diameter (mm) / Width (mm) Rim offset Loader width (mm) Tread Tread options
10.0/75-15.3 770 / 260 -5 1,100 AS SKD, MPT
10.0/75-15.3 770 / 260 -40 1,200 AS SKD, MPT
11.5/80-15.3 860 / 295 -40 1,210 AS
31x15.5-15 760 / 400 -70 1,370 AS SKD, Allground
15.0/55-17* 860 / 390 45 (1,310) AS
With wide axle
10.0/75-15.3 770 / 260 -5 1,370 AS SKD, MPT
11.5/80-15.3 860 / 295 40 1,330 AS
11.5/80-15.3 860 / 295 -5 1,410 As
31x15.5-15 760 / 400 45 1,390 AS SKD, Allground
31x15.5-15 760 / 400 0 1,480 AS SKD, Allground
31x13.5-15 800 / 350 -35 1,520 (1,380) Multi Trac
15.0/55-17 860 / 390 45 1,400 AS
15.0/55-17 860 / 390 0 1,490 AS
15.0/55-17 860 / 390 -40 1,570 AS
